伟顿全封闭驾驶式扫地车W2000的技术参数 TECHNICAL PARAMETERS:
1.清扫宽度 Working Width:1900-2100mm
2.清扫效率 Productivity:≥14000㎡/h
3.续航时间 Continuous Work Time:6-8h
4.垃圾箱容量 Waste Hopper Capacity:250L
5.过滤器面积（滤芯）Filter Surface:10㎡
6.主刷尺寸 Length of Main Brush:800mm
7.边刷尺寸 Diameter of Side Brush:500mm
8.行驶速度 Max Driving Speed:18km/h
9.清扫速度 Max Working speed:7-18km/h
10.爬坡能力 Gradeability:30度
11.电压 Voltage：48V
12.整机重量 Net weight ：1000Kg
13.作业功率 Working Power：(风机Vacuuming800+主刷Main Brush750+边刷Side Brush80x4+振尘Vibration90) =1960W
14.驱动功率 Driving Power(Motor)：3000W
15.总功率 Total Power:4960
16.雾式喷水水箱 Water Tank Capacity:50L
17.遮阳顶棚 Sunshade：标配
18.挡风玻璃 Windscreen：标配
19.尺寸（长*宽*高）Dimension(L/W/H)：2250*1900*1930mm
20.包装尺寸（长*宽*高）Packaging Size(L/W/H)：2350*1400*2050mm

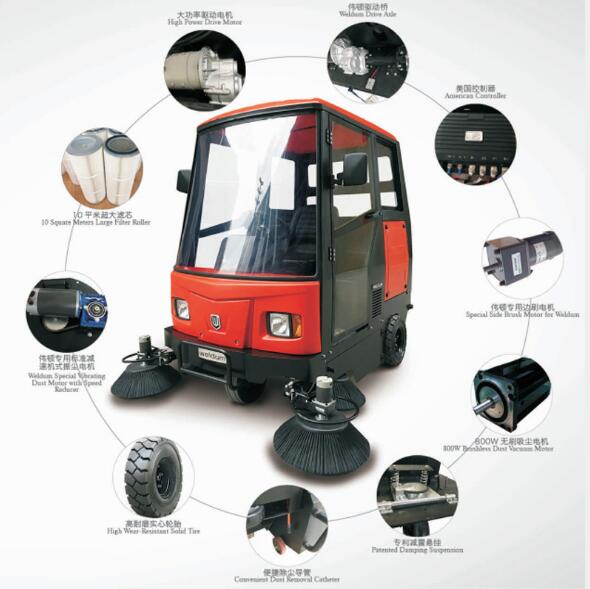

产品特点：
1.高集成电路：显示故障代码，自动保护电气配件，故障率低，方便日常维护。
2.定速巡航：让操作更轻松。
3.刹车回充：行驶途中动能转化为电能，续航时间更长。
4.强吸尘系统：800W的风机电机，10平方米大过滤面积，配合强负压离心式铝合金风叶，比同类型扫地机高双倍的吸尘效率，专业解决恶劣粉尘环境的扬尘问题。
5.采用3000W大扭矩他励驱动电机，设计3倍过载能力，稳定可靠，爬坡能力和汽车媲美。
6.驱动桥：无级变速后桥，铝合金箱体，修形研磨齿轮设计，无噪音，重量轻，不漏油，更耐久更可靠。
7.控制器：采用美国KELLY品牌控制器，确保动力输出平稳，性能卓越。
8.专利车身减震系统：减少机器因震动造成的机器故障率，提升操控舒适性。
9.刹车性能：水平路面全速行驶的情况下，2米内刹车，安全可靠。
10.250L大垃圾箱容量：减少垃圾倾倒次数，减轻清洁工劳动强度，节省工作时间，环卫作业利器。
11.滤芯清洁便捷：后欣市设计，所有内部件一目了然，清洁工也能进行建议故障排除。
12.维护方便：后欣市设计，所以内部件一目了然，清洁工也能进行建议故障排除。
13.综合性能稳定，工业级设计制造标准，性能稳定，维修成本低。
14.每小时工作效率可达14000平方米/每小时，一部机器可以代替12-16个劳动力。
PRODUCT FEATUES:
1.High Integrated Circuit:Display fault code,automatic protection of electrical elements,low failure rate,convenient for daily maintenance.
2.Cruise Control:Make the operation easier.
3.Braking Recharge:Driving kinetic energy change to electricity when brake.the uptime can be longer.
4.800W vacuum motor,10sq.m large filtering area,with strong negative pressure centrifugal aluminum blades,higher than the same type sweeping machine with double dust collection efficiency,specialized to solve the problem of the dusty environment.
5.With 3000W high torque separately excited drive motor,designed with 3 times overload capacity,stable and reliable,and has the equivalent climbing ability of the cars.
6.Ultra-quiet CVT(Continuously Variable Transmission)rear driving axle,with aluminum alloy enclosure and good-look grinding gear design,no noise,light weight,no leaking ,more durable and reliable.
7.Use thd U.S. "Kelly" brand controller,and ensure the smooth power output.The performance is remakable.
8.Reduce thd machine failure rate caused by vibration and improve the comfort.
9.Can be breaked within 2m along smooth road under the condition of full-speed operation.
10.Can reduce the times of dumping garbage,mitigate the labor strength of cleaner,and save work time.
11.W/external dust-removal pipe for daily filter roller cleaning,no need to remove the fitler roller,simple and quickly.
12.With rear-lift type design,all internal parts are clear at a glance ,and cleaner can also perform simple troubleshooting.
13.W/industrial-level design and manufacturing standard,stable performance,low maintenance cost.
14.Maximum woking efficiency per hour is up to 14000/h,and a machine can replace 12-16labor force.
|
|
